BION - Economical Flexibility

BION is a flexible and cost-efficient structure system, which allows endless roofs for a low cost. Specially convenient for parking areas with middle sections and suitable for screw piles.

Suitable for screw piles

Hidden cables & drainage

Low weight = Economical

BION Orientation Variations

The different orientation options enable the structures to be positioned optimally.

TYPE 1
Ideal orientation: South

TYPE 2
Ideal orientation: South

TYPE 3
Ideal orientation: East-West

TYPE 4
Ideal orientation: South

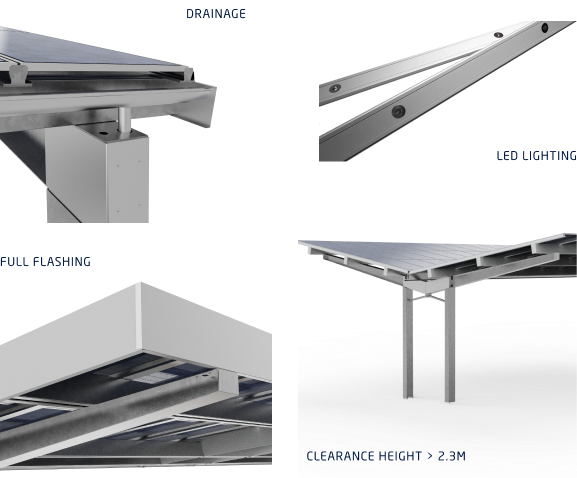

BION Optional Additions

addition_image
DRAINAGE

Half round zinc gutters & downpipes.

addition_image
Full END Flashing

Steel facia covers purlins and fixings.

addition_image
LED LIGHTING

LED panels in recycled aluminum.

addition_image
Extended CLEARENCE HEIGHT

Above 2,3 meter in clearance height.

BION Project References

Capital Park - Cambridge - England

Solar Parking - BION - With Subroof -

Civic Center - Gateshead - England

Solar Parking - BION - With Subroof - Extended height -

* Distance can be adjusted according to the requirements.

  • Materials

    Posts and rafters

    Hot Galvanized according to EN - 1461

    Beams and rail

    Zinc-magnesium in accordance to DIN 55928-8

  • Structural Standards

    Eurocode

    EN 1990 Eurocode 0: Basis of structural design
    EN 1991-1-3 Eurocode 1: Action on structures – Part 1-3: Snow loads
    EN 1991-1-4 Eurocode 1: Action on structures – Part 1-4: Wind actions
    EN 1991-1-7 Eurocode 1: General actions – Part 1-7: Accidental actions
    EN 1993-1-1 Eurocode 3: Design of steel structures – Part 1-1: General rules and rules for buildings
    EN 1993-1-3 Eurocode 3: Design of steel structures – Part 1-3: General rules
    EN 1993-1-5 Eurocode 3: Design of steel structures – Part 1-5: Plated structural elements
